Product Type: Starter
Replaces: 3223KT1
Starter Type: PMGR
Volts: 12
Teeth On Drive: 10
Rotation: Clockwise
Source: Aftermarket
Over 30,000 aftermarket & original parts
8-6 EST SALE SUPPORT
English/
Español/Call Us Today
Show navigationHide navigation
Visit Store
Newly Listed
Ending Soon
On Sale
Follow Seller
STARTER RAREELECTRICAL FOR FORD LT TRUCKS MINI MOTORHOME 77 4.9L 300 L6 W MT TO
Replaces Part Numbers & Specifications

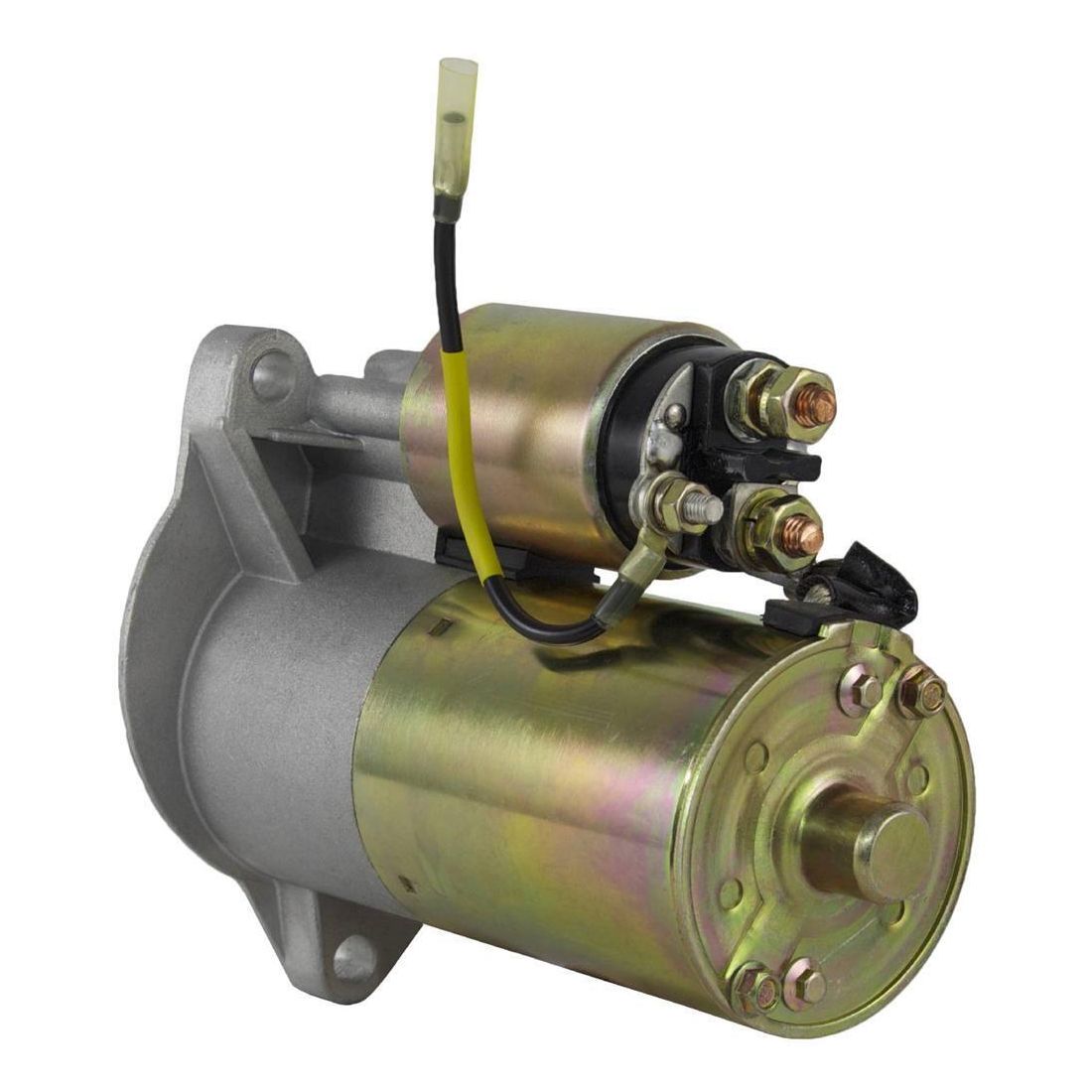

GEAR REDUCTION HIGH PERFORMANCE FORD FACTORY NEW MINI PMGR STARTER!
FITS 302 AND 351 ENGINES WITH A MANUAL TRANSMISSION.
THIS FORD PMGR 12 VOLT, CW, 10-TOOTH PINION STARTER IS 100% NEW AND SOLD OUTRIGHT WITH NO CORE CHARGE!
THIS STARTER WILL REPLACE OLDER 4 IN. TO 4-1/2 IN. STARTERS.
THIS UNIT PROVIDES A 50% WEIGHT REDUCTION, REQUIRING LESS CRANKING AMPS WHILE STILL CRANKING WITH TWICE THE TORQUE!
BECAUSE THE PMGR STARTER IS A SMALLER SIZE, IT PROVIDES BETTER HEADER CLEARANCE AND REDUCES THE EFFECTS OF A HOT START
SPECIAL NOTE
THIS STARTER ONLY WORKS WITH 164 TOOTH FLYWHEEL.

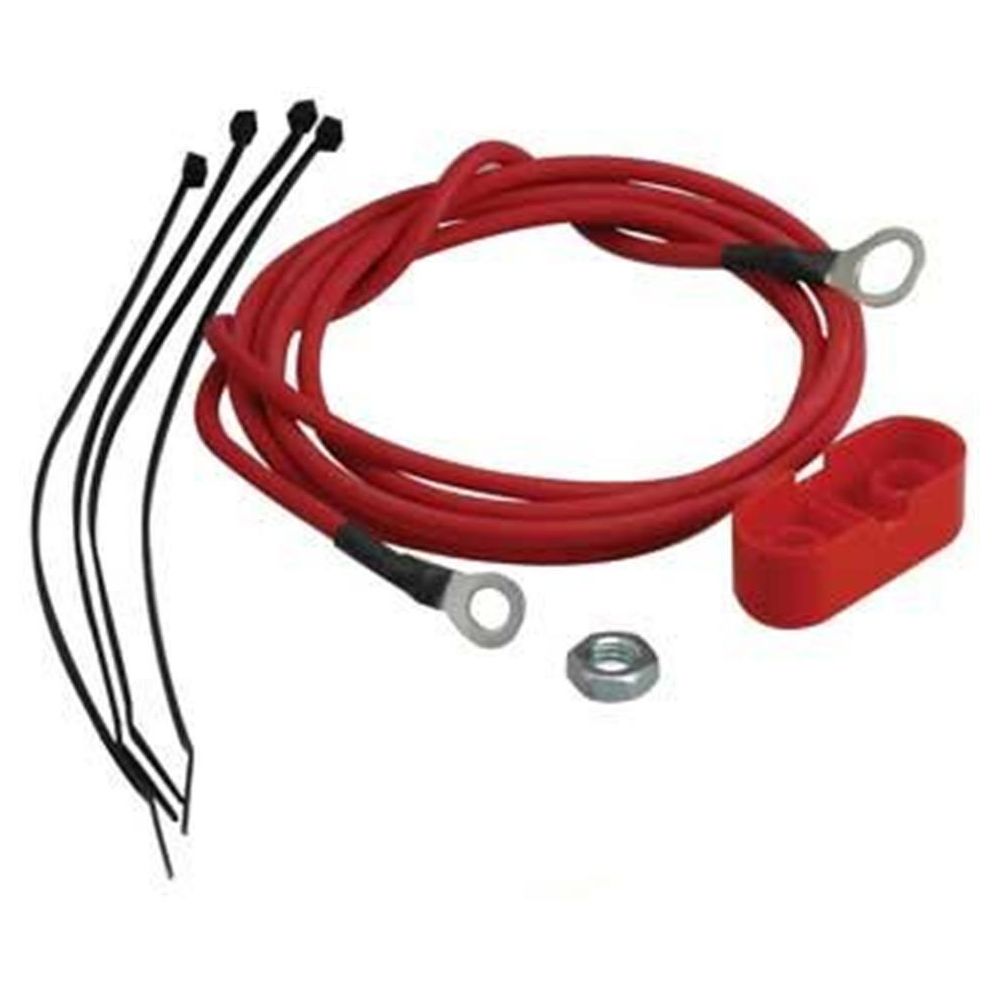

FOR VEHICLES 1991 AND OLDER - WE INCLUDE A FREE WIRING HARNESS ADAPTER KIT WITH INSTRUCTIONS
ITEM DESCRIPTION: STARTER
UNIT TYPE: FORD
TYPE: PMGR
VOLTAGE: 12
ROTATION: CLOCKWISE
TOOTH COUNT: 10
GEAR OD: 27.7MM / 1.091IN
DE HOUSING NUMBER: 371-14054
MOUNTING EAR 1: 11.0MM ID UNTHREADED
MOUNTING EAR 2: 10.0MM ID UNTHREADED
WEIGHT: 8.625 LBS / 3.92 KG
Product Notice
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new
ApplicationsShippingPaymentsPolicies
PLEASE VERIFY YOUR OEM PART NUMBER FROM YOUR ORIGINAL UNIT TO HELP ENSURE FITMENT
FORD LT TRUCKS MINI MOTORHOME 77 4.9L(300) L6 W/MT - TO 2/1/77
FORD LT TRUCKS MINI MOTORHOME 76-73 4.9L(300) L6 W/MT
FORD LT TRUCKS MINI MOTORHOME 77 5.0L(302) V8 W/MT - TO 3/1/77
FORD LT TRUCKS MINI MOTORHOME 76-69 5.0L(302) V8 W/MT
FORD LT TRUCKS MINI MOTORHOME 77 5.8L(351) V8 W/MT - TO 2/1/77
FORD LT TRUCKS MINI MOTORHOME 76-75 5.8L(351) V8 W/MT
FORD LT TRUCKS P-SERIES TRUCKS 74-65 3.9L(240) L6 W/MT
FORD LT TRUCKS P-SERIES TRUCKS 74-65 4.9L(300) L6 W/MT
FORD LT TRUCKS P-SERIES TRUCKS 76-69 5.0L(302) V8 W/MT
FORD LT TRUCKS RANCHERO 77 5.0L(302) V8 W/MT - TO 3/1/77
FORD LT TRUCKS RANCHERO 74-69 5.0L(302) V8 W/MT
FORD LT TRUCKS RANCHERO 74-69 5.8L(351) V8 W/MT
MERCURY COMET 63-62 3.7L(221) L6 W/MT
MERCURY COMET 64-63 4.3L(260) V8 W/MT
MERCURY COMET 68-64 4.7L(289) V8 W/MT
MERCURY COMET 76-68 5.0L(302) V8 W/MT
MERCURY COMET 69 5.8L(351) V8 W/MT
MERCURY COUGAR 68-67 4.7L(289) V8 W/MT
MERCURY COUGAR 70-68 5.0L(302) V8 W/MT
MERCURY COUGAR 74-69 5.8L(351) V8 W/MT
MERCURY CYCLONE 67-64 4.7L(289) V8 W/MT
MERCURY CYCLONE 71-68 5.0L(302) V8 W/MT
MERCURY CYCLONE 71-69 5.8L(351) V8 W/MT
MERCURY MARQUIS 68 4.7L(289) V8 W/MT
MERCURY MARQUIS 71 5.0L(302) V8 W/MT
MERCURY MONARCH 77 5.0L(302) V8 W/MT - TO 3/1/77
MERCURY MONARCH 76-75 5.0L(302) V8 W/MT
MERCURY MONTEGO 74-68 5.0L(302) V8 W/MT
MERCURY MONTEGO 76-75 5.8L(351) V8 WINDSOR ENGINE - W/MT
MERCURY MONTEGO 74-69 5.8L(351) V8 W/MT
MERCURY MONTEREY 71 5.0L(302) V8 W/MT
FORD CARS COUNTRY SQUIRE 72-68 5.0L(302) V8 W/MT
FORD CARS CUSTOM 500 72-65 3.9L(240) L6 W/MT
FORD CARS CUSTOM 500 65-62 4.3L(260) V8 W/MT
FORD CARS CUSTOM 500 67-65 4.7L(289) V8 W/MT
FORD CARS CUSTOM 500 72-68 5.0L(302) V8 W/MT
FORD CARS FAIRLANE 68-65 4.7L(289) V8 W/MT
FORD CARS FAIRLANE 70-68 5.0L(302) V8 W/MT
FORD CARS FAIRLANE 70-69 5.8L(351) V8 W/MT
FORD CARS FALCON 68-65 4.7L(289) V8 W/MT
FORD CARS FALCON 70-68 5.0L(302) V8 W/MT
FORD CARS FULLSIZE (PRE 1965) 65-62 4.3L(260) V8 W/MT
FORD CARS GALAXIE 500 72-65 3.9L(240) L6 W/MT
FORD CARS GALAXIE 500 67-63 4.7L(289) V8 W/MT
FORD CARS GALAXIE 500 72-68 5.0L(302) V8 W/MT
FORD CARS GRAN TORINO 74-72 5.0L(302) V8 W/MT
FORD CARS GRAN TORINO 76-75 5.8L(351) V8 WINDSOR ENGINE - W/MT
FORD CARS GRAN TORINO 74-72 5.8L(351) V8 W/MT
FORD CARS GRANADA 77 5.0L(302) V8 W/MT - TO 3/1/77
FORD CARS GRANADA 76-75 5.0L(302) V8 W/MT
FORD CARS LTD 72-65 3.9L(240) L6 W/MT
FORD CARS LTD 68-67 4.7L(289) V8 W/MT
FORD CARS LTD 72-68 5.0L(302) V8 W/MT
FORD CARS MAVERICK 76-71 5.0L(302) V8 W/MT
FORD CARS MUSTANG 65 4.3L(260) V8 W/MT
FORD CARS MUSTANG 68-65 4.7L(289) V8 W/MT
FORD CARS MUSTANG 73-68 5.0L(302) V8 W/MT
FORD CARS MUSTANG 73-69 5.8L(351) V8 W/MT
FORD CARS RANCH WAGON 69-65 3.9L(240) L6 W/MT
FORD CARS RANCH WAGON 68-63 4.7L(289) V8 W/MT
FORD CARS RANCH WAGON 72-68 5.0L(302) V8 W/MT
FORD CARS TORINO 74-68 5.0L(302) V8 W/MT
FORD CARS TORINO 76-75 5.8L(351) V8 WINDSOR ENGINE - W/MT
FORD CARS TORINO 74-69 5.8L(351) V8 W/MT
FORD HD TRUCKS MEDIUM & HD - GASOLINE ENGINE 77-74 4.9L(300) L6 - GAS W/MT
FORD HD TRUCKS MEDIUM & HD - GASOLINE ENGINE 73-71 4.9L(300) L6 - GAS W/MT
FORD HD TRUCKS MEDIUM & HD - GASOLINE ENGINE 70 4.9L(300) L6 - GAS W/MT
FORD HD TRUCKS MEDIUM & HD - GASOLINE ENGINE 69-65 4.9L(300) L6 - GAS W/MT
FORD HD TRUCKS MEDIUM & HD - GASOLINE ENGINE 77-68 5.0L(302) V8 - GAS W/MT
FORD HD TRUCKS MEDIUM & HD - GASOLINE ENGINE 77-68 5.8L(351) V8 - GAS W/MT
FORD LT TRUCKS BRONCO 68-66 4.7L(289) V8 W/MT
FORD LT TRUCKS BRONCO 77 5.0L(302) V8 W/MT - TO 3/1/77
FORD LT TRUCKS BRONCO 76-69 5.0L(302) V8 W/MT
FORD LT TRUCKS E-SERIES VANS 74-65 3.9L(240) L6 W/MT
FORD LT TRUCKS E-SERIES VANS 68-67 4.7L(289) V8 W/MT
FORD LT TRUCKS E-SERIES VANS 77 4.9L(300) L6 W/MT - TO 3/1/77
FORD LT TRUCKS E-SERIES VANS 76-72 4.9L(300) L6 W/MT
FORD LT TRUCKS E-SERIES VANS 74-68 5.0L(302) V8 W/MT
FORD LT TRUCKS E-SERIES VANS 77 5.8L(351) V8 W/MT - TO 2/1/77
FORD LT TRUCKS E-SERIES VANS 76-75 5.8L(351) V8 W/MT
FORD LT TRUCKS F-SERIES PICKUPS 74-65 3.9L(240) L6 W/MT
FORD LT TRUCKS F-SERIES PICKUPS 77 4.9L(300) L6 W/MT - TO 2/1/77
FORD LT TRUCKS F-SERIES PICKUPS 76-65 4.9L(300) L6 W/MT
FORD LT TRUCKS F-SERIES PICKUPS 77 5.0L(302) V8 W/MT - TO 3/1/77
FORD LT TRUCKS F-SERIES PICKUPS 76-69 5.0L(302) V8 W/MT
FORD LT TRUCKS MINI MOTORHOME 74-69 3.9L(240) L6 W/MT
FORD CARS COUNTRY SEDAN 70-65 3.9L(240) L6 W/MT
FORD CARS COUNTRY SEDAN 65 4.3L(260) V8 W/MT
FORD CARS COUNTRY SEDAN 67-65 4.7L(289) V8 W/MT
FORD CARS COUNTRY SEDAN 72-68 5.0L(302) V8 W/MT
FORD CARS COUNTRY SQUIRE 67-65 4.7L(289) V8 W/MT
FORD HD TRUCKS MEDIUM & HD - GASOLINE ENGINE 82-78 4.9L(300) L6 - GAS W/MT
FORD HD TRUCKS MEDIUM & HD - GASOLINE ENGINE 80-78 5.0L(302) V8 - GAS W/MT
FORD HD TRUCKS MEDIUM & HD - GASOLINE ENGINE 80-78 5.8L(351) V8 - GAS W/MT
FORD LT TRUCKS BRONCO 81 4.9L(300) L6 W/MT - TO 1/15/81
FORD LT TRUCKS BRONCO 80 4.9L(300) L6 W/MT
FORD LT TRUCKS BRONCO 81 5.0L(302) V8 W/MT - TO 1/15/81
FORD LT TRUCKS BRONCO 80 5.0L(302) V8 W/MT
FORD LT TRUCKS BRONCO 77 5.0L(302) V8 W/MT - FROM 3/1/77
FORD LT TRUCKS BRONCO 80 5.8L(351) V8 WINDSOR ENGINE - W/MT
FORD LT TRUCKS E-SERIES VANS 81 4.9L(300) L6 W/MT - TO 1/15/81
FORD LT TRUCKS E-SERIES VANS 80-78 4.9L(300) L6 W/MT
FORD LT TRUCKS E-SERIES VANS 77 4.9L(300) L6 W/MT - FROM 3/1/77
FORD LT TRUCKS E-SERIES VANS 81 5.0L(302) V8 W/MT - TO 1/15/81
FORD LT TRUCKS E-SERIES VANS 80-79 5.0L(302) V8 W/MT
FORD LT TRUCKS E-SERIES VANS 80 5.8L(351) V8 WINDSOR ENGINE - W/MT
FORD LT TRUCKS E-SERIES VANS 79-78 5.8L(351) V8 W/MT
FORD LT TRUCKS E-SERIES VANS 77 5.8L(351) V8 W/MT - FROM 2/1/77
FORD LT TRUCKS F-SERIES PICKUPS 81 4.9L(300) L6 W/MT - TO 1/15/81
FORD LT TRUCKS F-SERIES PICKUPS 80-78 4.9L(300) L6 W/MT
FORD LT TRUCKS F-SERIES PICKUPS 77 4.9L(300) L6 W/MT - FROM 2/1/77
FORD LT TRUCKS F-SERIES PICKUPS 81 5.0L(302) V8 W/MT - TO 1/15/81
FORD LT TRUCKS F-SERIES PICKUPS 80-78 5.0L(302) V8 W/MT
FORD LT TRUCKS F-SERIES PICKUPS 77 5.0L(302) V8 W/MT - FROM 3/1/77
FORD LT TRUCKS MINI MOTORHOME 79-78 4.9L(300) L6 W/MT
FORD LT TRUCKS MINI MOTORHOME 77 4.9L(300) L6 W/MT - FROM 2/1/77
FORD LT TRUCKS MINI MOTORHOME 79-78 5.0L(302) V8 W/MT
FORD LT TRUCKS MINI MOTORHOME 77 5.0L(302) V8 W/MT - FROM 3/1/77
FORD LT TRUCKS MINI MOTORHOME 79-78 5.8L(351) V8 W/MT
FORD LT TRUCKS MINI MOTORHOME 77 5.8L(351) V8 W/MT - FROM 2/1/77
FORD LT TRUCKS RANCHERO 79-78 5.0L(302) V8 W/MT
FORD LT TRUCKS RANCHERO 77 5.0L(302) V8 W/MT - FROM 3/1/77
MERCURY COMET 77 5.0L(302) V8 W/MT - FROM 3/1/77
MERCURY MONARCH 80 5.0L(302) V8 W/MT - ALL
MERCURY MONARCH 79-78 5.0L(302) V8 W/MT
MERCURY MONARCH 77 5.0L(302) V8 W/MT - FROM 3/1/77
MERCURY ZEPHYR 79-78 5.0L(302) V8 W/MT
FORD CARS FAIRMONT 79-78 5.0L(302) V8 W/MT
FORD CARS GRANADA 80 5.0L(302) V8 W/MT - ALL
FORD CARS GRANADA 79-78 5.0L(302) V8 W/MT
FORD CARS GRANADA 77 5.0L(302) V8 W/MT - FROM 3/1/77
FORD CARS MAVERICK 77 5.0L(302) V8 W/MT - FROM 3/1/77
FORD LT TRUCKS E-SERIES VANS 82 5.0L(302) V8 W/MT
FORD LT TRUCKS E-SERIES VANS 81 5.0L(302) V8 W/MT - FROM 1/15/81
FORD LT TRUCKS E-SERIES VANS 82 5.8L(351) V8 W/MT
FORD LT TRUCKS E-SERIES VANS 81 5.8L(351) V8 WINDSOR ENGINE - W/MT
FORD LT TRUCKS F-SERIES PICKUPS 83 3.8L(232) V6 W/MT
FORD LT TRUCKS F-SERIES PICKUPS 82 3.8L(232) V6 W/MT
FORD LT TRUCKS F-SERIES PICKUPS 82-81 4.2L(255) V8 W/MT
FORD LT TRUCKS F-SERIES PICKUPS 82 4.9L(300) L6 W/MT
FORD LT TRUCKS F-SERIES PICKUPS 81 4.9L(300) L6 W/MT - FROM 1/15/81
FORD LT TRUCKS F-SERIES PICKUPS 82 5.0L(302) V8 W/MT
FORD LT TRUCKS F-SERIES PICKUPS 81 5.0L(302) V8 W/MT - FROM 1/15/81
FORD LT TRUCKS F-SERIES PICKUPS 82 5.8L(351) V8 W/MT
FORD LT TRUCKS F-SERIES PICKUPS 81 5.8L(351) V8 WINDSOR ENGINE - W/MT
FORD LT TRUCKS BRONCO 91-85 4.9L(300) L6 W/MT
FORD LT TRUCKS BRONCO 91-85 5.0L(302) V8 W/MT
FORD LT TRUCKS BRONCO 91-85 5.8L(351) V8 W/MT
FORD LT TRUCKS E-SERIES VANS 91-85 4.9L(300) L6 W/MT
FORD LT TRUCKS E-SERIES VANS 91-85 5.0L(302) V8 W/MT
FORD LT TRUCKS E-SERIES VANS 91-85 5.8L(351) V8 W/MT
FORD LT TRUCKS F-SERIES PICKUPS 91-85 4.9L(300) L6 W/MT
FORD LT TRUCKS F-SERIES PICKUPS 91-85 5.0L(302) V8 W/MT
FORD LT TRUCKS F-SERIES PICKUPS 91-85 5.8L(351) V8 W/MT
FORD LT TRUCKS BRONCO 93-92 4.9L(300) L6 W/MT - PMGR STARTER
FORD LT TRUCKS BRONCO 96-92 5.0L(302) V8 W/MT - PMGR STARTER
FORD LT TRUCKS BRONCO 96-92 5.8L(351) V8 W/MT - PMGR STARTER
FORD LT TRUCKS E-SERIES VANS 96-92 4.9L(300) L6 W/MT - PMGR STARTER
FORD LT TRUCKS E-SERIES VANS 96-92 5.0L(302) V8 W/MT - PMGR STARTER
FORD LT TRUCKS E-SERIES VANS 96-92 5.8L(351) V8 W/MT - PMGR STARTER
FORD LT TRUCKS F-SERIES PICKUPS 96-92 4.9L(300) L6 W/MT - PMGR STARTER
FORD LT TRUCKS F-SERIES PICKUPS 96-92 5.0L(302) V8 W/MT - PMGR STARTER
FORD LT TRUCKS F-SERIES PICKUPS 97 5.8L(351) V8 W/MT (1ST PRODUCTION)
FORD LT TRUCKS F-SERIES PICKUPS 96-92 5.8L(351) V8 W/MT
