Fit for:

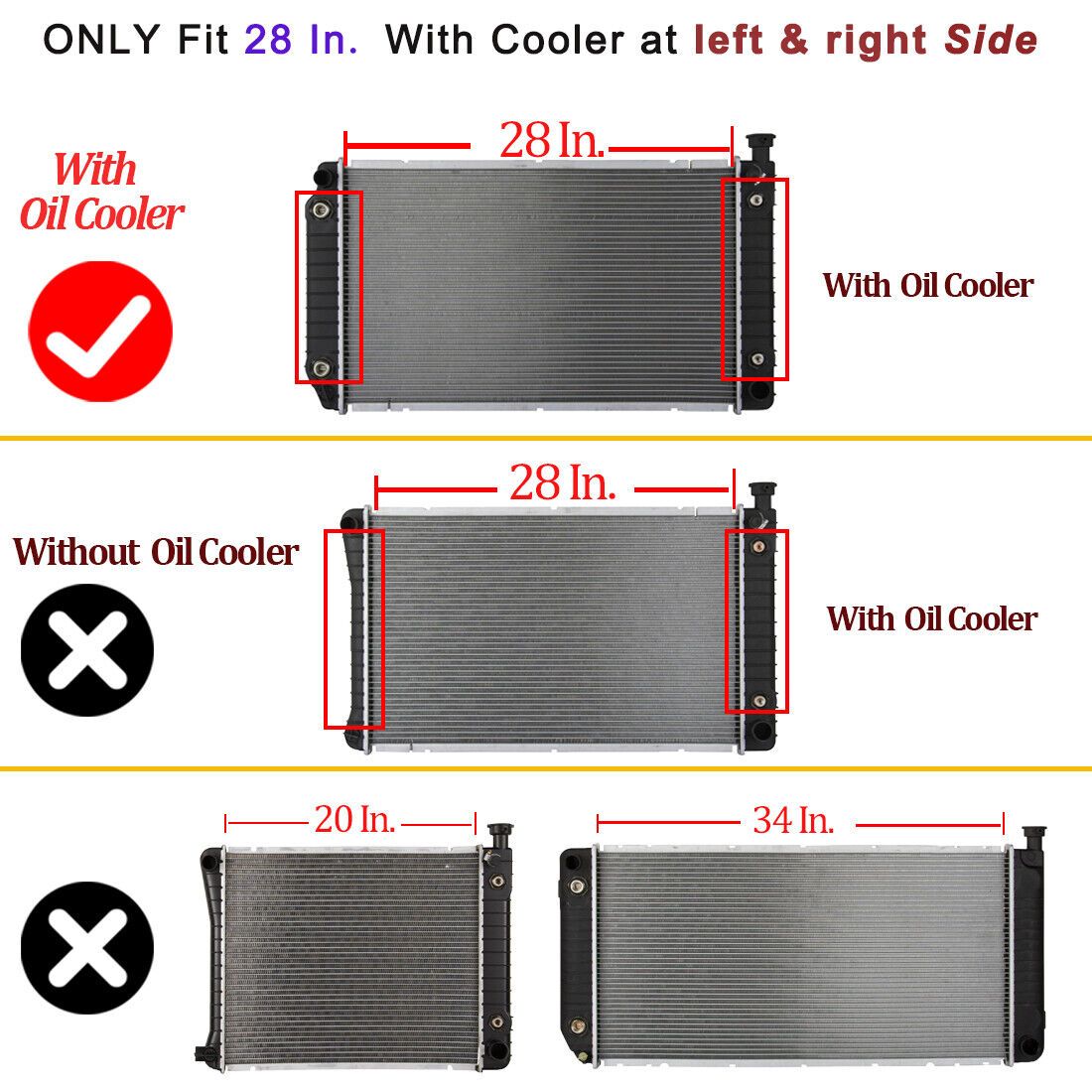

ONLY Fit 28 Inch radiator Core, Not for W/ 20 In. or 34 In.
Not for W/O Engine Oil Cooler
Not for 4.1L, 6.2L, 6.5L or 7.4L Engine
1988 - 1994 Chevrolet C1500 5.7L
1988 - 1999 Chevrolet C1500 5.0L
1994 - 1999 Chevrolet C1500 4.3L
1988 - 1994 Chevrolet C2500 5.7L
1988 - 1999 Chevrolet C2500 5.0L
1994 - 1995 Chevrolet C2500 4.3L
1988 - 1994 Chevrolet C3500 5.7L
1992 - 1995 Chevrolet C1500 Suburban 5.7L
1992 - 1995 Chevrolet C2500 Suburban 5.7L
1988 - 1994 Chevrolet K1500 5.7L
1988 - 1999 Chevrolet K1500 5.0L
1994 - 1997 Chevrolet K1500 4.3L
1988 - 1999 Chevrolet K2500 5.0L
1988 - 1994 Chevrolet K2500 5.7L
1994 - 1995 Chevrolet K2500 4.3L
1988 - 1994 Chevrolet K3500 5.7L
1992 - 1995 Chevrolet K1500 Suburban 5.7L
1992 - 1995 Chevrolet K2500 Suburban 5.7L
1988 - 1994 GMC C1500 5.7L
1988 - 1999 GMC C1500 5.0L
1994 - 1998 GMC C1500 4.3L
1988 - 1994 GMC C2500 5.7L
1988 - 1999 GMC C2500 5.0L
1994 - 1995 GMC C2500 4.3L
1988 - 1994 GMC C3500 5.7L
1992 - 1995 GMC C1500 Suburban 5.7L
1992 - 1995 GMC C2500 Suburban 5.7L
1988 - 1994 GMC K1500 5.7L
1988 - 1999 GMC K1500 5.0L
1994 - 1998 GMC K1500 4.3L
1988 - 1994 GMC K2500 5.7L
1988 - 1999 GMC K2500 5.0L
1994 - 1995 GMC K2500 4.3L
1988 - 1994 GMC K3500 5.7L
1992 - 1995 GMC K1500 Suburban 5.7L
1992 - 1995 GMC K2500 Suburban 5.7L
Interchange part number: DPI 622, CU622, 1790, CU1790, 2458333, 52459680, 52469081, 52469085, 52469673, 52469674
Core Material: Aluminum
Tank Material: Plastic
Core Dimension: 28-1/4 Inch x 17-1/4 Inch
Core Thickness: 1-1/4 Inch
Row: 1
Engine Oil Cooler: Include
Transmission Oil Cooler: Include
Package: 1x Radiator (NO CAP)
Note:
1. The radiator cap that has not passed the test can’t release the pressure when it reaches the pressure value.
2. The damaged thermostat is unable to carry out a large cycle, resulting in a continuous increase in the radiator pressure
3. The radiator fan does not turn, resulting in high temperature in the water tank
4. Drain the air from the cooling system. Refer to the user manual or repair manual
5. Please refer to owner's manual to add coolant
6. Do not open the hood until the steam has subsided. The engine compartment may be very hot, causing serious injuries such as burns
7. Please stop the vehicle immediately, when “ENGINE OVERHEAT/High Temperature” shows on the dashboard or steam comes out from under the hood
8. Keep hands and clothing (especially a tie, a scarf) away from the fans and belts. Failure to do so may cause the hands or clothing to be caught, resulting in serious injuries
9. Do not loosen the radiator cap while the engine and radiator are hot. Serious injuries, such as burns, may result from hot coolant and steam released under pressure
