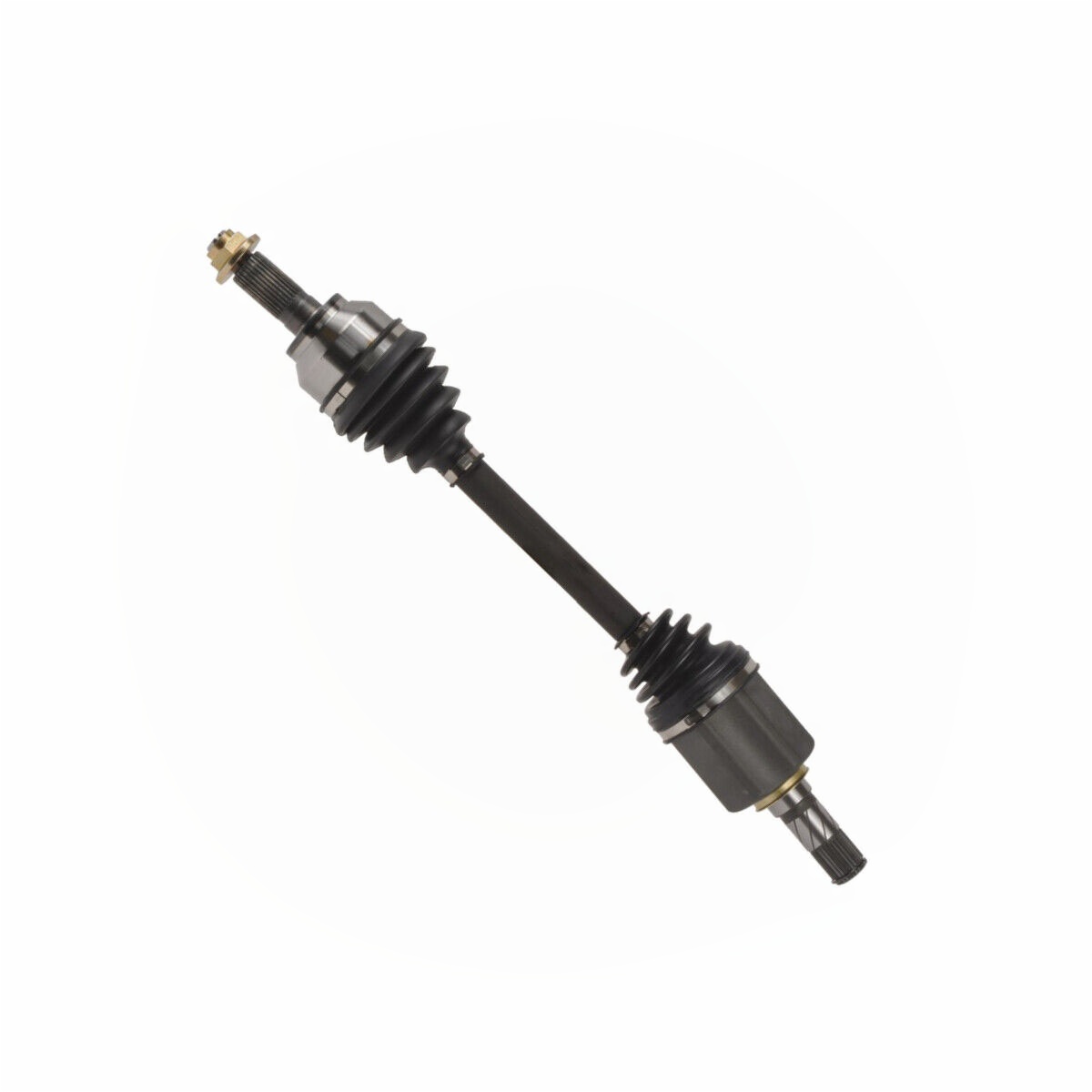

4 Sets of - Front CV Axle Shaft Assembly Driver For Mazda 05-13 09-13 Sport 06-15
Every set can be described as following:
Front New CV Axle Shaft Assembly Neoprene Boots Driver Side
Front CV Axle Shaft Assembly Driver for Mazda 3 Sport 5 2005-2013 Mazda 3 2.0L
Compatibility Chart
Mazda | 3 | 2005 | 2.0L, 2.3L | Manual Transmission | From 01/06/2005 | Front Left
Mazda | 3 | 2006 | 2.0L, 2.3L | Manual Transmission | Front Left
Mazda | 3 | 2007 | 2.3L | Automatic Transmission | Front Left
Mazda | 3 | 2007 - 2009 | 2.0L | Manual Transmission | Front Left
Mazda | 3 | 2007 - 2009 | 2.3L | Naturally Aspirated | Manual Transmission | Front Left
Mazda | 3 | 2009 | 2.3L | Automatic Transmission | Front Left
Mazda | 3 | 2010 - 2011 | 2.0L, 2.5L | Automatic Transmission, Manual Transmission | Front Left
Mazda | 3 | 2012 - 2013 | 2.0L | Automatic Transmission, Manual Transmission | Excludes SKYACTIV | Front Left
Mazda | 3 | 2012 - 2013 | 2.5L | Automatic Transmission, Manual Transmission | Front Left
Mazda | 3 Sport | 2009 | Manual Transmission | Front Left
Mazda | 3 Sport | 2010 - 2011 | All Trim Levels | Front Left
Mazda | 3 Sport | 2012 - 2013 | 2.0L | Automatic Transmission, Manual Transmission | Excludes SKYACTIV | Front Left
Mazda | 3 Sport | 2012 - 2013 | 2.5L | Automatic Transmission, Manual Transmission | Front Left
Mazda | 5 | 2006 - 2008 | Manual Transmission | Front Left
Mazda | 5 | 2009 - 2010 | All Trim Levels | Front Left
Mazda | 5 | 2012 - 2015 | Sport | Manual Transmission | Front Left
Product Details
Weight: 14.7 lbs
Height: 4.3 in
Width: 4.3 in
Length: 27.6 in
Transmission Type: Automatic, Manual
Surface Finish: Black Coating
Shaft Material: 40CR
Overall Compressed Length: 25.02 in / 635.5 mm
Output Shaft Connection Style: Spline
Number of Outboard Splines: 28 Teeth
Number of Inboard Splines: 28 Teeth
Items Included: N/A

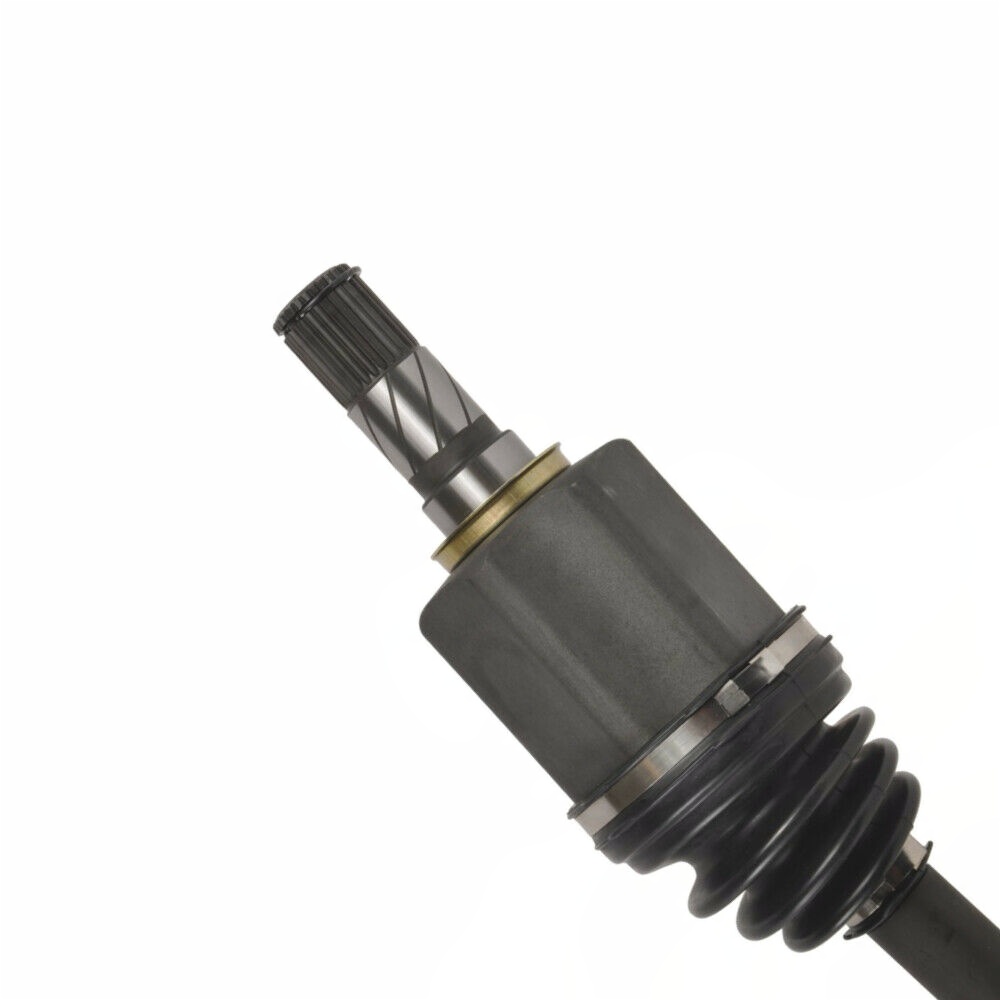

Input Shaft Connection Style: Spline
Inboard Clip Included: Snap Ring
Hazardous Material: No
Hardware Included: No
Grease Type: Molybdenum Disulfide Lithium Grease
Fitment Type: direct replacement
Drive Type: FWD
Cotter Pin Included: No
Boot Color: Black

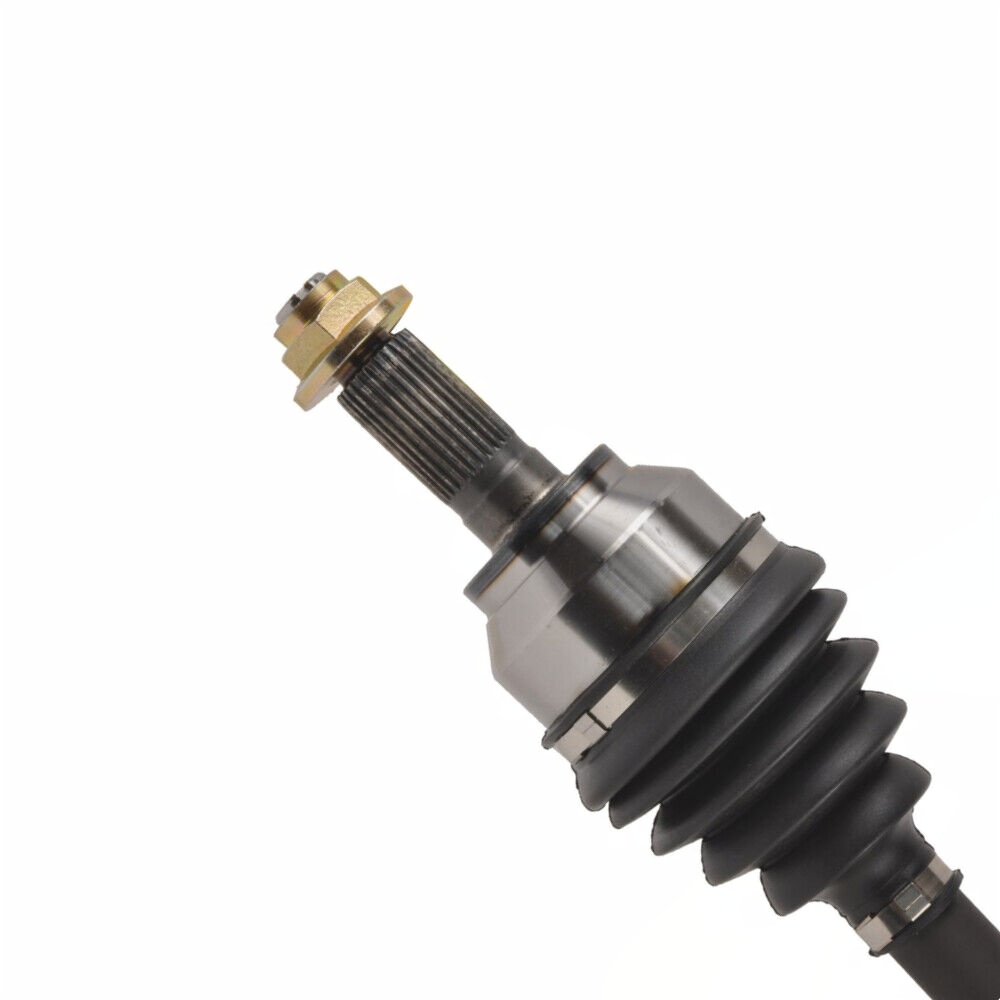

Axle Nut Thread Size: M22 x 1.5
Axle Nut Locking Type: Self-Lock
Axle Nut Included: Yes
Axle Nut Hex Size: 1.26 in / 32 mm
Axle Boot Material: Neoprene
ABS Ring Included: No
New CV Axle Assemblies
Distributed by
ISO / IATF 16949 certified, direct fit and made from high quality materials to meet OEM specifications
Built to last - temperature and pressure resistant grease prevents friction and wear
Premium quality neoprene boots with secure clamps prevent grease leakage and premature boot failure
When replacing CV Axles in pairs, complete the installation on 1 side before removing the axle from the other side, otherwise the differential gears may become misaligned which requires the transaxle to be taken apart so the gears can be reassembled
